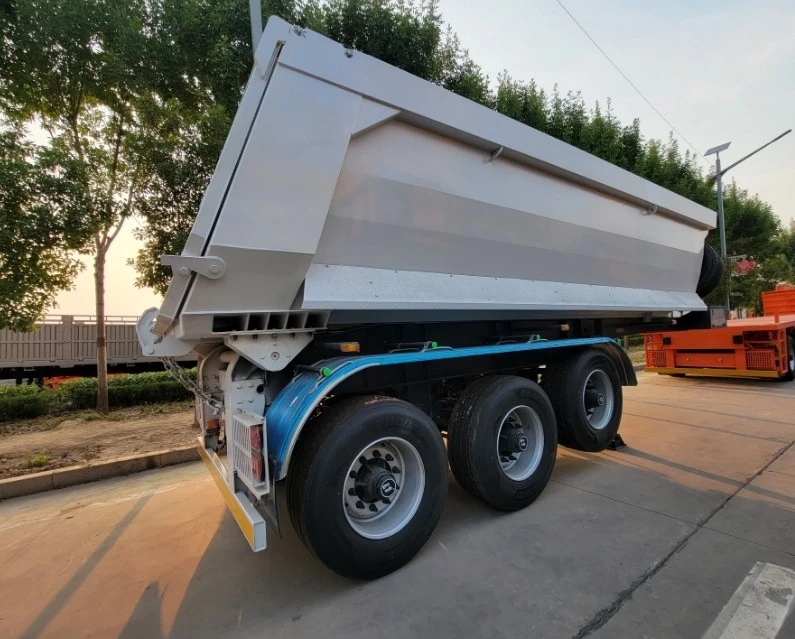

Rear Tipping Dump Trailers
| Products Description |
For suppliers, we will provide you with enough profit margin, and at the same time, we will provide after-sales service for our products within 1-3 years. We will provide you with testing to ensure product quality before leaving the factory. At the same time,, Any customization is acceptable.
A rear dump semi-trailer is a type of specialized trailer commonly used for transportation and dumping various bulk materials, such as gravel, coal, and construction materials. The main feature of this semi-trailer is its rear dump capability. It is designed to allow cargo to be unloaded from the rear of the trailer, enabling quick dumping and loading. This design greatly improves loading efficiency, saving time and manpower.Some rear dump semi-trailers are also equipped with hydraulic systems for more precise and controlled dumping process. The advantages of this type of semi-trailer are its large payload capacity, high efficiency, and versatility. It can operate on various roads and terrains, adapting to different working environments.
| Specification |
|
Application |
Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading |
|||
|
Model |
2 axles tipper trailer |
3 axles tipper trailer |
4 axles tipper trailer |
5 - 6 axles tipper trailer |
|
Bucket capacity |
25 m³ |
30/35/40 m³ |
40 m³ |
45 m³ |
|
Dimension (mm) |
8500*2500*3500 |
10000x2500x3800 |
10500*2500*3900 |
11500*2500*3950 |
|
Rim and tires |
12.00R22.5tires 9.0-22.5 rims |
12.00R22.5tires 9.0-22.5 rims |
315/80R22.5tires 9.0-22.5rims |
12.00R20tires 9.0-20rims |
|
Main Beams |
T700 / Q345B double plate |
|||
|
Height:500mm |
||||
|
Upper Plate: 14mm |
||||
|
Middle Plate: 8mm |
||||
|
Lower Plate: 16mm |
||||
|
Axle |
13T/16T FUWA / BPW / Own Brand |
|||
|
King Pin |
JOST brand 2.0'' / 3.5'' bolt type king pin |
|||
|
Landing Gear |
28T double speed JOST / Own Brand |
|||
|
Suspension |
Heavy duty mechanical suspension / Air bag / Bogies |
|||
|
Pneumatic Braking System |
WABCO RE 6 relay valve T30/30 air brake chamber |
|||
|
Spring leaf |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
|||
|
Light |
LED light,24V,7ways(7 wire harness) |
|||
|
Tool Box |
steel/aluminum One piece,1m*0.5m*0.5m(Size can be choose freely) |
|||
|
Painting |
1 coat of anticorrosive prime, 2coats of final paint |
|||
| Details Images |
| FAQ |
Q1. What is the advantage about your company?
are sold to Africa, Southeast Asia, the Middle East, East Asia, South Asia, Oceania, North America, South America, Central America, Eastern Europe, Western Europe, and Southern Europe.
