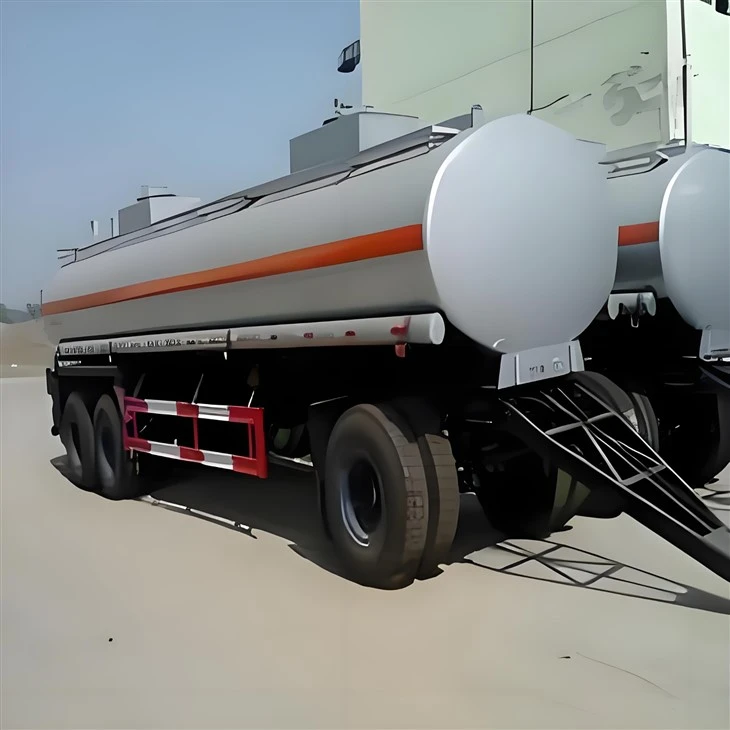

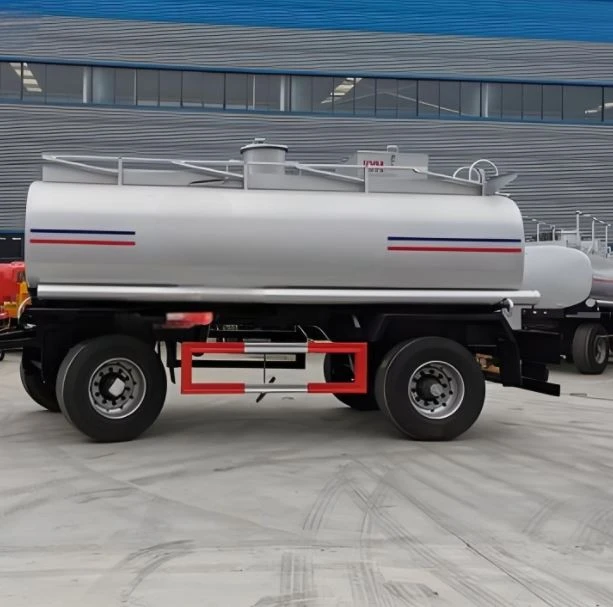

Full Oil Tank Trailer

Structure and Components

Reference Photos

Reference Specifications

A.Fuel tank trailer 1. Overall dimensions: 7500*2500*3800mm 2. Rated load: 30000kg 3. Curb weight: 6000kg B. Chassis (Q355) 1. Main beam height: 500mm Upper belly plate: 14mm Neutral plate: 6mm Lower belly plate: 14mm 2. Crossbeam: high-strength reinforced C. Towing pin 1. As shown in the left photo, unhooked D. Cargo box (Q235) 1. Dimensions: 7000*2300*1600mm 2. Tank thickness: 4mm 3. Tank head thickness: 5mm 4.1 Compartment E. Walking mechanism 1. Axle: 13T*3PCS 2. Tire: 12R22.5*12pcs 3. Wheel hub: 12pcs 4. System: Mechanical suspension 5. Leaf spring: Adaptive leaf spring 6. Brake system 6.1 Relay valve: Chinese brand 6.2 Air chamber: Double air chamber*6pcs 6.3 Air cylinder: 2pcs 6.4 Connector: Plug-in type F. Accessories 1. Light: LED 2. Circuit: 24V, 7pin 3. Paint: Baking paint process 4. Guardrail: 25cm 5. Subsea valve

Drawbar Trailer Tanker Product Description:

The smaller-capacity tanker trucks transport liquid cargo throughout a local community. These types of trucks are typically used at airports to fuel aircraft. Small tankers also deliver domestic fuels, such as liquefied petroleum gas, to homes. This type of tanker normally carries less than 1,000 gallons. Large tankers can transport more than 11,000 gallons and carry various liquids, including hazardous materials.

Advantage:

1. Low manufacturing cost. Generally, a dolly trailer is 50 ~ 60% cheaper than the matching trailer.

2. The fuel consumption of drawbar trailers is low, and the fuel consumption of 100 ton kilometers is about 40% lower than that of trucks.

3. The drawbar trailers is easy to maintain, and the repair cost is low.

4. The full trailer garage has less investment, and the trailer itself does not need a garage.

5. It is more suitable than a truck for transporting equipment that is rarely loaded or unloaded from the vehicle.
