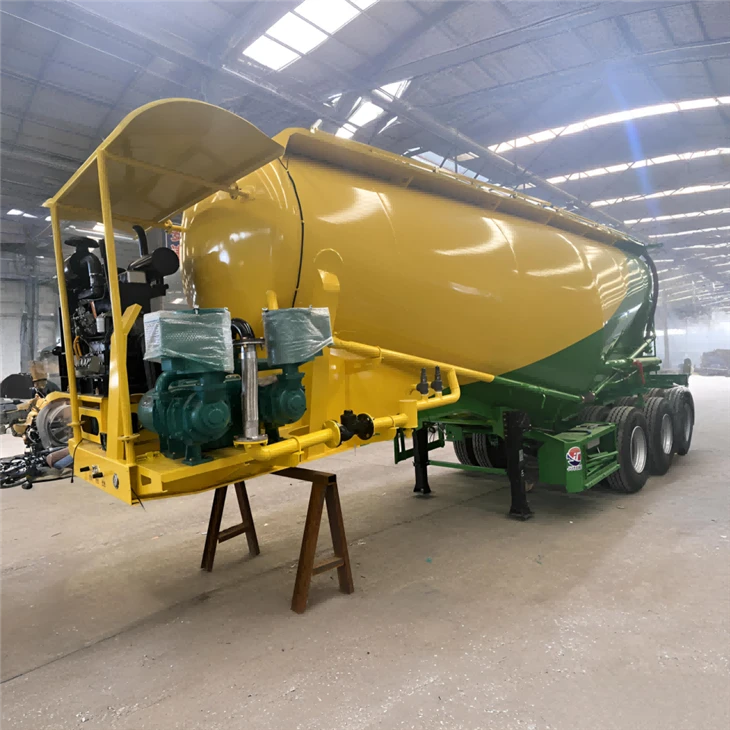

Powder Tank Semi-trailer For Cement & Fly Ash
Product discription of powder tank semi trailer
|
Item Category |
Technical Specification |
Material |
Overseas Application Advantages |
|
Tank Body |
Custom volume 35\60m³, horizontal inclined tank design, working pressure 0.2\0.35MPa |
Q345 high strength carbon steel |
Low residual powder, good pressure resistance, anti-wear inner wall, long service life |
|
Pneumatic System |
Double Roots blower + diesel engine power pack |
Cast iron blower + brand diesel engine |
Independent power supply, strong air output, high unloading efficiency, adapt to poor fuel quality in Africa |
|
Chassis & Suspension |
3-axle heavy-duty suspension, mechanical ratchet locking device |
High tensile steel frame + spring steel suspension |
Strong bearing capacity, anti-vibration during high-speed transportation, durable on gravel & mountain roads |
|
Tire & Axle |
Standard heavy-duty axle, 12R22.5 wear-resistant tires |
Forged steel axle housing, all-steel radial tires |
Mature universal tire model, easy spare parts procurement locally overseas |
|
Auxiliary & Safety Parts |
Water tank assembly, calibrated butterfly valves, complete lighting & reflective signs |
PE plastic, stainless steel, standard automotive parts |
Convenient daily maintenance, fully comply with international road safety standards |
Fluidized air cloth is laid at the tank bottom, matched with calibrated manual butterfly valves and high-pressure rubber pipes, accurately distributing air flow to guarantee uniform material emptying with residual material rate less than 1%.
Diesel engine matched with two parallel Roots blowers, independent power unit without tractor power take-off, stable air supply pressure to support long-distance pipeline pneumatic conveying.
The suspension is fitted with gear ratchet tensioner and anti-rust chain locking assembly to fix suspension posture during transportation, resisting frame deformation caused by bumpy roads.
Separated interfaces for control pipeline, power supply and air supply pipeline, equipped with digital tachometer to monitor blower speed in real time with clear marks for quick connection and commissioning.
Core strengths
Self-constructed closed loop of industrial integration
Powerful Brand Influence
25 Years of Deep Technology Accumulation
Integrating the robotics ecosystem
Q1: What materials can this tanker transport?
EN: It is specially designed for dry bulk powder, including cement, fly ash, lime powder, mineral powder, dry mortar and other non-corrosive powdery building materials.
Q2: How about the unloading efficiency and residual material rate?
EN: Unloading speed reaches 25~40 tons per hour, the optimized fluidization structure makes tank residual material less than 1%, effectively reducing cargo loss for customers.
Q3: Can the diesel blower work normally with low-quality diesel fuel?
EN: Matched with mature industrial diesel engine, with good tolerance to inferior diesel oil prevalent in Africa and Central Asia, low failure rate during long-term continuous operation.
Q4: What export documents can you provide for customs clearance?
EN: We provide commercial invoice, packing list, CO certificate of origin, factory inspection report, CE certification documents, English operation & maintenance manual, wearing parts list. Color and partial configurations can be customized as required.
Q5: What is your factory strength and after-sales service?
EN: We are one of Shandong Top 100 manufacturers with 20 years of semi-trailer manufacturing experience and total production over 20,000 units. We supply factory-price spare parts permanently and provide online remote technical guidance for overseas customers.
