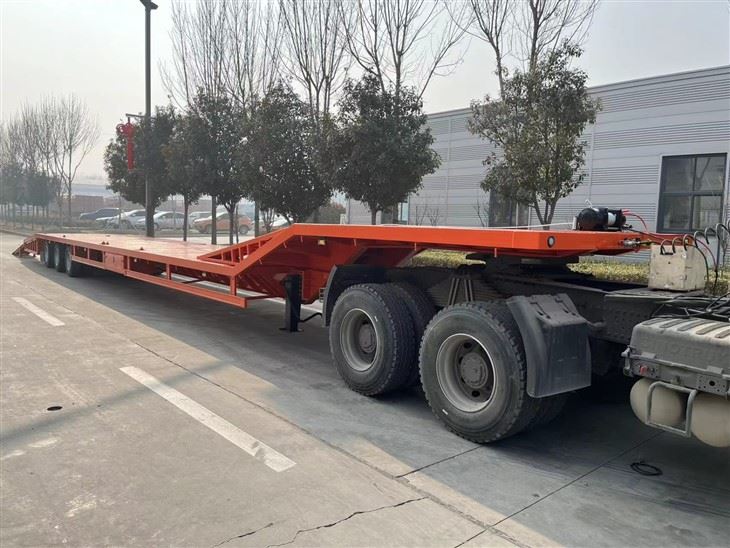

Low-bed Trailer

Send Inquiry
Product Introduction

da2975a4-df6a-49ac-8d8f-a71190754f4f

20240607085007

20240607085015

20240607085021

20240607100543

20240607100602

Product description

Low bed semi trailers are usually used to transport heavy vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, paving machines, cranes, etc.) and other heavy-duty goods.The lower the center of gravity, the more stable and The better the safety, the stronger the ability to transport ultra-high cargo and pass overhead obstacles.

1. VERSATILE TRANSPORTATION ADAPTABILITY
Low flatbed semi-trailers can adapt to various goods and transportation needs. Its size and design can be adjusted according to different requirements, easily handling the transportation of large equipment or small parts and meeting diverse logistics demands.

2. EFFICIENT AND COST-EFFECTIVE TRANSPORTATION
Thanks to its flexible and multifunctional design, it can complete transportation tasks more quickly, saving both time and costs. Moreover, the transportation efficiency of low flatbed semi-trailers is relatively high, enabling faster delivery of goods to the destination.

3. SUPERIOR PERFORMANCE ON SPECIAL ROADS
It can fully reduce weight while meeting load conditions. On snowy or muddy roads, the traction control system allows for smooth acceleration and prevents the vehicle from slipping due to the drive wheels.

4. EXCELLENT ANTI-CORROSION AND RUST PREVENTION
It has corrosion resistance and strong print adhesiveness for up to 9 years. The whole body painting process ensures no missed spots and provides the best anti-rust performance.



Specification



Outside Dimensions (L*W*H)

13500 (L)*3000 (W)* 1600(mm)

Loading Platform

9500*3000mm,Height above ground 1080mm

Related Load

60 Tons

Material Of Main Beam

Q355 ,upper plate: 16mm, bottom plate : 18mm, middle plate: 14mm

Thickness of floor plate: 4 mm Corrugated steel plate

Suspension

Mechanical suspension

Axle

3 units * 16 Tons

Tyre

12 units * 295/60R22.5

Ladder

Mechanical ladder

Brake System

Dual like Brake valve

Brake Air Chamber

6pcs double chamber

Electrical

24V, 7 core socket, Equip with side, rear lights and reflective band

King Pin

2"(50#) & 3.5"(90#) exchangeable type

Landing Gear

28 tons type

Spare Wheel Carrier

1 tyre carrier, 1 tool set

Accessory

Standard trailer tools

Painting

As customer's requirements

color

As customer's requirements



PRODUCT DETAILS

product-1-1

Design drawings

20230905164441

Packaging and Shipping

2025012015235820250120152408

FAQ

1. How long I can receive?
Kindly let us know your destination port, usually Asian countries seashipping time 3-20 days.
Europe countries 30-45 days. Africa countries 40- 60 days. American countries 25-40 days.


2. Can we inspect your factory?
Yes, welcome to visit our factory! We're in Jining, Shandong, China.

3. Can we customize?
Yes, we are factory and provide OEM service. Please send your trailer specification for our confirmation.
4. Can I pick up goods at your factory?
Yes, we will quote EXW price for you. When goods are ready, you can arrange picking up.
5. Can you ship to my China forwarder/shipping agent?
Yes, kindly send us the contact info and detailed address.
6. What's your lead time?
It depends on trailer/trailer parts type, and the quantity.

7. How many units for 1 Container?
After confirming specifications, the accurate units will be provided.
8. Are you still looking for distributors?
Yes, we're looking for building cooperation with distributors Worldwide. Our factory will provide you with the highest quality service, best price and high cost - effective products.
