Used Dump Truck 8*4
Details of Dump Trucks
I. Product Overview
Dump trucks are heavy-duty vehicles specifically designed for efficient transportation and unloading of goods, widely used in various industries such as construction, mining, and logistics. With their strong carrying capacity, convenient self-unloading function, and reliable performance, they have become an indispensable tool in various engineering and transportation operations.
II. Product Parameters (Specifications)
| Vehicle Model | ZZ3317N4267E1 | ZZ3317N2867C1 |
|---|---|---|
| Drive Type | 8×4 | 8×4 |
| Rated Mass | 15,420 kg | 15.8 tons |
| Curb Weight | 15,450 kg | / |
| Gross Vehicle Mass | 31,000 kg | 31 tons |
| Vehicle Length | 10,825 mm | 9,100 mm |
| Vehicle Width | 2,550 mm | 2,500 mm |
| Vehicle Height | 3,450 mm | 3,200 mm |
| Cargo Box Length | 7,800 mm | 6,200 mm |
| Cargo Box Width | 2,350 mm | 2,300 mm |
| Cargo Box Height | 1,500 mm | 1,200 mm |
| Front Wheel Track | 2,041 mm | 2,022 / 2,022, 2,041 / 2,041 mm |
| Rear Wheel Track | 1,830 / 1,830 mm | 1,830 / 1,830 mm |
| Front Overhang | 1,500 mm | / |
| Rear Overhang | 1,975 mm | / |
| Approach Angle | 14° | 19° |
| Departure Angle | 21° | 27° |
| Wheelbase | 1800 + 4200 + 1350 mm | 1800 + 2800 + 1350 mm |
| Cab Type | Flat Roof | / |
| Seating Capacity | 2 persons | / |
| Engine Model | Sinotruk D10.38 - 50 | Sinotruk WD615.95E |
| Maximum Power | 276 KW | 247 KW |
| Maximum Power Rotational Speed | 2,000 rpm | 2,200 rpm |
| Maximum Torque | 1,560 N.m | 1,350 N.m |
| Maximum Torque Rotational Speed | 1,200 - 1,500 rpm | 1,100 - 1600 rpm |
| Displacement | 9726 mL | 9.726 L |
| Fuel Type | Diesel | Diesel |
| Emission Standard | China - V / Euro - V | China - III / Euro - III |
| Transmission Model | HW10 | HW15710 |
| Number of Forward Gears | 10 gears | 10 gears |
| Number of Reverse Gears | 2 gears | 2 gears |
| Leaf Spring Number | 11 / 11 / 12, 4 / 4 / 12 | 14 / 13 / 14 / 13 / 12 |
| Tire Quantity | 12 pieces | 12 pieces |
| Tire Specification | 12.00R20 18PR, 11.00R20 | 11.00 - 20 11.00r20 12.00 - 20 12.00r20 |
III. Product Features and Applications
Powerful Carrying Capacity
Adopts a high-strength frame and a sturdy cargo box structure. The frame undergoes special processing technology, featuring excellent bending and torsion resistance, capable of withstanding the pressure of heavy loads, ensuring the stability and safety of the vehicle during transportation.
The cargo box is made of high-quality steel with wear-resistant and corrosion-resistant properties. The interior of the box is smooth and flat, which not only facilitates the loading and unloading of goods but also effectively protects the goods from damage. It is suitable for transporting various bulk materials such as sand, coal, and ore, playing an important role in mining operations and construction sites.
Efficient Self-unloading System
Equipped with an advanced hydraulic self-unloading device, providing strong and stable lifting force. The driver can easily control the lifting and lowering of the cargo box through the control buttons in the cab, with simple and convenient operation.
The self-unloading angle is reasonable, enabling quick and complete unloading of goods, greatly improving the loading and unloading efficiency, reducing the vehicle's stay time at the loading and unloading site, and enhancing the overall transportation efficiency. It is widely used in logistics transportation and urban muck transportation scenarios that require frequent loading and unloading of goods.
Powerful Power System
Mounted with a high-performance engine, characterized by abundant power and good fuel economy. Advanced fuel injection technology and turbocharging technology ensure the engine's efficient operation under various working conditions, providing a continuous power output.
Matched with a precise transmission and transmission system, with high transmission efficiency and smooth gear shifting, enabling the vehicle to easily handle various complex road conditions, whether it is climbing, muddy roads, or highway driving, it can perform excellently. It is suitable for various transportation tasks such as long-distance transportation and heavy-duty short-distance transportation.
Comfortable Driving Experience
The cab is designed to be spacious and comfortable, with seats ergonomically designed and adjustable in multiple angles, effectively relieving the driver's fatigue during long-distance driving.
Equipped with an advanced air conditioning system, audio system, and multifunctional instrument panel, providing the driver with a comfortable working environment and convenient operation experience. At the same time, good sound insulation effect and shock absorption performance further enhance the driving comfort, allowing the driver to maintain a good mental state during work.
Safe and Reliable Assurance
Equipped with a complete braking system, including disc brakes, ABS anti-lock braking system, etc., with stable and reliable braking performance, able to brake quickly in emergency situations, effectively shortening the braking distance and ensuring driving safety.
The vehicle body is equipped with multiple safety warning devices, such as reversing radar, reversing image, and driving recorder, providing all-round safety assistance for the driver, reducing blind spots, and improving driving safety. In addition, the vehicle has undergone strict safety tests and quality inspections to ensure that each vehicle can meet high-standard safety requirements.
IV. Production Details

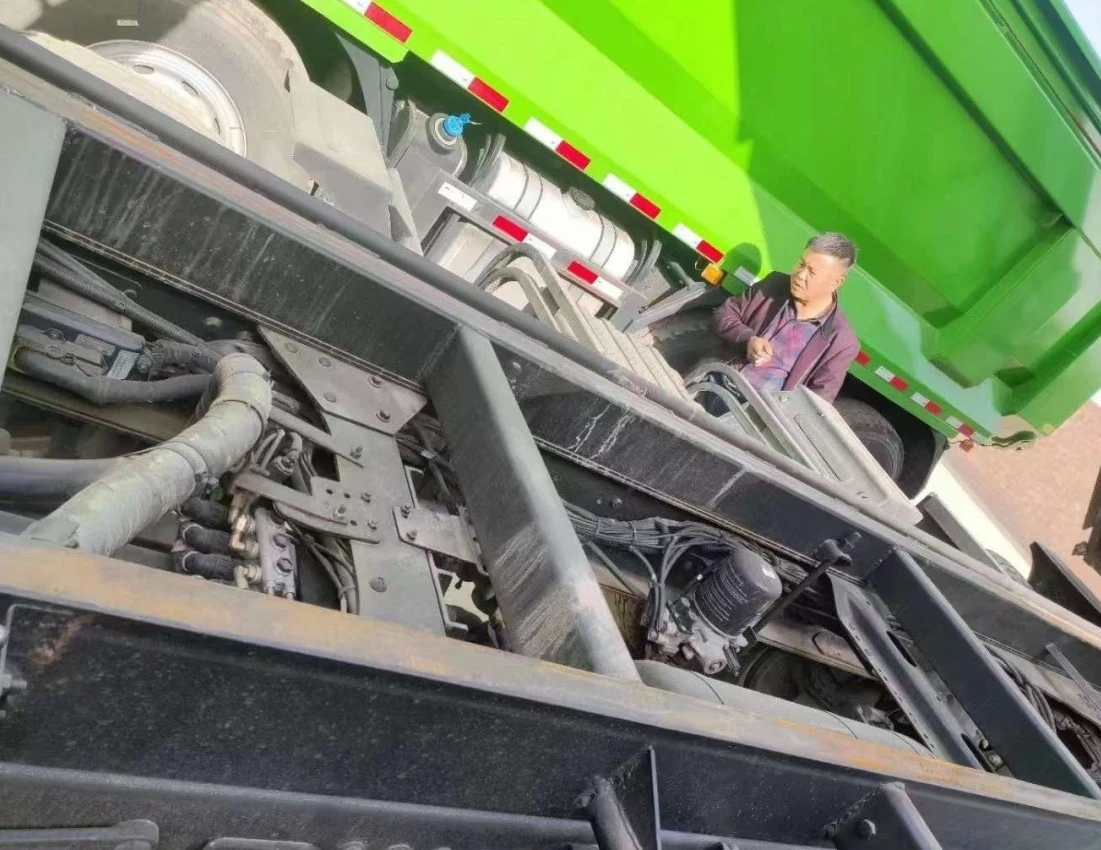

Frame Manufacturing
Utilizes advanced automated welding equipment and processes to ensure the stability and reliability of the frame welding quality. During the welding process, welding parameters are strictly controlled, and non-destructive testing is carried out on the welds to guarantee the strength and durability of the frame.
After the frame assembly is completed, strict flaw detection and stress testing are carried out to ensure that the frame will not have deformation or fracture problems when bearing heavy loads.
Cargo Box Production
The cargo box plates are carefully selected and pre-treated to ensure the flatness and surface quality of the plates. Precise cutting is carried out using CNC cutting equipment to ensure the dimensional accuracy and assembly accuracy of each component of the cargo box.
During the welding and assembly process of the cargo box, operations are strictly carried out in accordance with the process flow to ensure the structural strength and sealing performance of the cargo box. The surface of the cargo box undergoes anti-rust and anti-corrosion treatment to extend the service life of the cargo box.
Engine Assembly
The engine production line adopts advanced automated assembly equipment and high-precision testing instruments to ensure the assembly accuracy and quality of each engine component. During the engine assembly process, the cleanliness and assembly clearance of the components are strictly controlled to ensure the performance and reliability of the engine.
After each engine is assembled, it undergoes strict bench tests, including power test, torque test, emission test, etc., to ensure that the engine's various performance indicators meet the requirements before it can be installed on the vehicle and delivered.
V. Product Qualifications
Quality Certification
Has passed the ISO 9001 quality management system certification. From raw material procurement, manufacturing to product inspection, every link is strictly controlled in accordance with the requirements of the quality management system to ensure the stability and consistency of product quality.
The vehicle complies with relevant national quality standards and regulatory requirements and has obtained the national compulsory product certification (CCC certification), proving that the product meets national standards in terms of safety and performance and can be legally sold and used in the domestic market.
Environmental Certification
The engine emissions comply with the current national emission standards, such as the National VI emission standard. Advanced exhaust gas treatment technology is adopted to effectively reduce the pollutant emissions in the vehicle's exhaust gas, which is environmentally friendly and meets the requirements of sustainable development.
VI. Delivery, Transportation and Service
Delivery Process
After the customer places an order, we will promptly arrange the production plan and keep in communication with the customer to inform the production progress. After the vehicle is produced and passes the strict inspection, we will negotiate the delivery time and place with the customer.
At the time of delivery, we will provide the customer with relevant documents and materials of the vehicle, including the purchase invoice, certificate of conformity, user manual, warranty manual, etc., and arrange professional technicians to conduct vehicle delivery acceptance and operation training for the customer to ensure that the customer can smoothly receive and use the vehicle.
Transportation Service
We cooperate with multiple professional logistics transportation companies. According to the customer's requirements and actual situation, we will select the appropriate transportation mode and route to ensure the safe and timely delivery of the vehicle to the customer's designated location. During the transportation process, we will purchase transportation insurance for the vehicle to protect the customer's interests.
After-sales Service
Provide a comprehensive after-sales service network. There are multiple after-sales service stations across the country, equipped with professional maintenance technicians and advanced maintenance equipment, able to provide timely and efficient maintenance services and technical support to customers. Our after-sales service team is available 24/7 to respond to customer inquiries and service requests, ensuring that customers' vehicles can maintain good operating conditions and minimize downtime. We also offer regular vehicle maintenance reminders and maintenance packages to help customers extend the service life of their vehicles and reduce maintenance costs.
