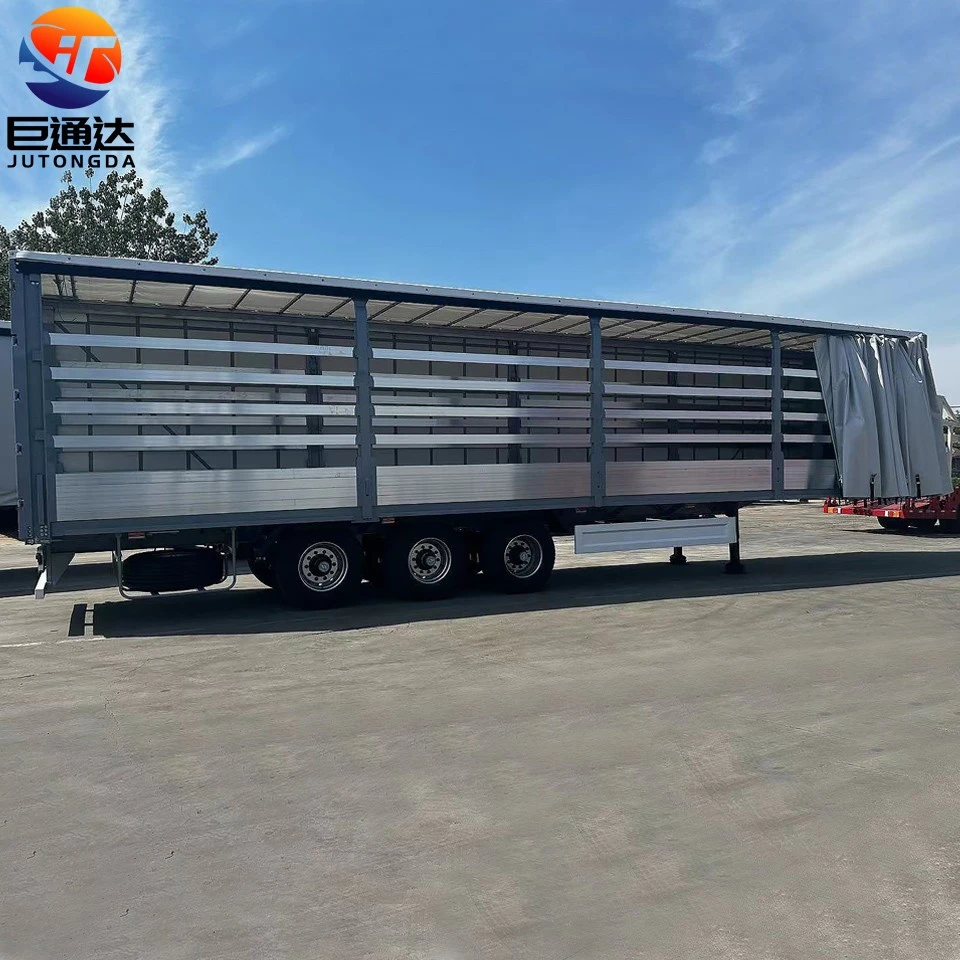

Three Axles Curtain Side Semi Trailer

Three Axles Curtain Side Semi Trailer is a multi-purpose transport vehicle. Its advantage is that both sides and the tail can be easily opened and closed, making it convenient to load and unload goods through the platforms on both sides. Therefore, it is favored by many transportation companies and truck drivers.
Send Inquiry
Product Introduction
Three Axles Curtain Side Semi Trailer



Three Axles Curtain Side Semi Trailer Product Introduction
product-800-500

Three Axles Curtain Side Semi Trailer

Curtain side semi-trailers are usually used to transport various types of cargo. After the curtains and frames on both sides are opened, cargo can be loaded and unloaded very conveniently by forklifts or manually. The tail gate can be easily opened like a container door, making it convenient for drivers to inspect the cargo

Three Axles Curtain Side Semi Trailer

This trailer consists of a sturdy frame and curtains that are high-temperature resistant, corrosion-resistant, and rainproof. It can effectively prevent cargo from being stolen and protect them from erosion by rain, wind, and sand. Loading and unloading cargo from the sides is more efficient than doing so through the rear door, which can save mechanical and labor costs

product-800-500







  • Three Axles Curtain Side Semi Trailer Product Paramenters
Product Name Curtain side semi-trailer
Brand Name JUTONGDA
Loading Capacity 30 tons -60 tons
Axle 3 Axles,13tons/16tons FUWA/BPW Axle
Tyre 6 pieces wide tires,385/65R22.5
Dimensions(L*W*H) 12500mm*2500mm*3550mm
Tare Weight 6.5 tons
Axle Spacing 1310mm
Rims 9*22.5/8-20/8.5-20
Suspension System Mechanical suspension(Germany type or America type) or air suspension
Brake System Wabco re 6 relay valve,T30/30+T30 spring brake chamber,two units of 45L air tanks
Main Beam Q345B stell Height 500mm
Chassis Upper 14mm,lower 16mm,mid web 8mm
King Pin 2" or 3.5" JOST brand
Landing Gear 28tons JOST brand,FUWA brand,Other brand
Electrical System 24V 7Ways
Light and Reflectors Rear light,rear reflector,turn indicative light,side reflector,fog lamp,number plate light
Painting Electrophoretic paint, optional colors
Tool Box Optional materials: aluminum, carbon steel, stainless steel
Spare Tyre One piece





  • Three Axles Curtain Side Semi TrailerDetailed introduction
product-381-274

Bottom frame

The main beam is made of 500mm high-strength steel, with closely and orderly arranged cross braces to ensure the strength the vehicle body

product-381-274

Air suspension

It relieves cargo jolts during driving and improves tire lifespan. It can be replaced with a leaf spring suspension

product-381-274

Spare tire carrier

A full-body and sturdy spare tire carrier can store 2 tires and allows for easy access

product-381-274

Front axle lift

In the no-load state, the front axle can be lifted, which can effectively reduce fuel consumption and tire wear







Three Axles Curtain Side Semi Trailer Packing method
product-800-500

Three units are packed as a group

This is the most commonly used packing method. Packing three units as a group can achieve the optimal volume while meeting the requirements of sea transportation, thus saving sea freight costs. The tires and accessories on the upper deck will be fixed on the deck and shipped together with the vehicle

Packing in containers

According to your requirements for transportation, we can also adopt the method of shipping by container. Each container can hold two trailers

Advantages: It can effectively protect the safety of the trailers Disadvantages: You will need mechanical assistance to take the trailers out of the container after received

product-800-500





Company and workshop

product-511-400

The company covers an area of 50,000 square meters and has departments such as foreign trade, design, research,development,production

product-511-400

The company has two production workshops and 10 production lines, with an annual output of more than 4,000 trailers of various types

product-511-400

The company's products are sold far to regions such as Australia, Africa, the Middle East and Central Asia.





Customer Visit



product-377-307
product-377-307
product-377-307
product-377-307




  • Certificates and Qualifications

20250802220310





Why choose us?



Do you have your own factory?

+

-

We are not just a foreign trade company. Our group company has a Design Department, a Product R&D Department, a Foreign Trade Department, two factories and 10 production lines, with an annual output of more than 4,000 trailers of various types.

Can you meet my customization requirements?

+

-

Of course, we can customize and produce according to your requirements for special vehicle models.

Can you deliver on time?

+

-

We will sign a contract with the customer and deliver the goods on schedule as agreed in the contract.

How can I trust you?

+

-

Integrity in operation is our philosophy, and we adhere to the principle of making a deal while gaining a friend. You are welcome to visit our company for inspection.

What kind of payment methods do you accept?

+

-

We accpet both T/T : 30% deposit by T/T,70% balance should be paid before shipment.
