13.5m FLATBED TRAILER
13.5 FLATBED TRAILER Introduction

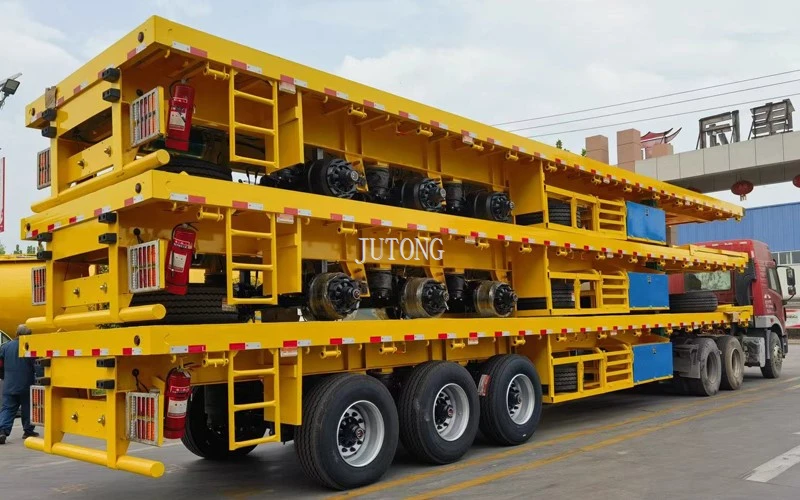

13.5m flatbed trailer
Container And Bulk Cargo Transport Semi Trailer overall design of this trailer is both aesthetically pleasing and practical. The air suspension system effectively cushions the bumps of goods during driving, while also significantly extending the service life of the tires. Customers can choose leaf spring suspension according to their working environment. The trailer body is made of Q345 high-strength carbon steel, with the upper part being 14mm thick, the lower part 16mm thick, and the middle web 8mm thick, which can fully meet the needs of daily transportation
13.5m flatbed trailer
Container and Bulk Cargo Transport Semi Trailer multi-purpose transport trailer with 385/65R22.5 wide tires. The trailer is equipped with 12 container locks, allowing free switching between transporting 20-foot and 40-foot containers. Detachable columns (with adjustable height) are installed on both sides of the trailer, enabling it to transport goods such as timber, electric poles, and pipes

- 13.5m flatbed trailer
| Product Name | 20ft and 40 ft Container and Bulk Cargo Transport Semi Trailer |
| Brand Name | JUTONGDA |
| Loading Capacity | 40 tons -60 tons |
| Axle | 3 Axles,13tons FUWA/BPW Axle |
| Tyre | 6 pieces wide tires,385/65R22.5 |
| Dimensions(L×W×H) | 12500mm-13500mm*2500mm*1550mm |
| Tare Weight | 6.5 tons |
| Axle Spacing | 1310mm |
| Rims | 11.75×22.5 |
| Suspension System | Leaf spring suspension / air suspension |
| Brake System | Dual line pneumatic brake system |
| Main Beam | Q345 carbon stell Height 500mm |
| Chassis | Upper 14mm,lower 16mm,mid web 8mm |
| Twist Locks | 12 units |
| King Pin | 2" or 3.5" JOST brand |
| Landing Gear | 28tons |
| Electrical System | 24V |
| Light and Reflectors | Rear light,rear reflector,turn indicative light,side reflector,fog lamp,number plate light |
| Painting | Electrophoretic paint, optional colors |
| Tool Box | Optional materials: aluminum, carbon steel, stainless steel |
| Spare Tyre | One piece or two piece |
- 13.5m flatbed trailer Detailed introduction

front baffle is detachable
Front baffle made frame structure and thickened steel, connected to vehicle body in plug-in manner and fixed with bolts

Water tank
The water tank is fixed and protected by dedicated frame, and the capacity of the water tank is selectable

Rear anti-collision design
Rubber anti-collision blocks taillight protective covers
thickened anti-collision beams

Landing Gear
JOST brand 28 Tons
Two speed manual operation
13.5m flatbed trailer Packing method

Three units are packed as a group
This is the most commonly used packing method. Packing three units as a group can achieve the optimal volume while meeting the requirements of sea transportation, thus saving sea freight costs. The tires and accessories on the upper deck will be fixed on the deck and shipped together with the vehicle
Packing in containers
According to your requirements for transportation, we can also adopt the method of shipping by container. Each container can hold two trailers
Advantages: It can effectively protect the safety of the trailers Disadvantages: You will need mechanical assistance to take the trailers out of the container after received

Company and workshop

The company covers an area of 50,000 square meters and has departments such as foreign trade, design, research,development,production

The company has two production workshops and 10 production lines, with an annual output of more than 4,000 trailers of various types

The company's products are sold far to regions such as Australia, Africa, the Middle East and Central Asia.
Customer Visit




- Certificates and Qualifications

Why choose us?
Do you have your own factory?
+
-
We are not just a foreign trade company. Our group company has a Design Department, a Product R&D Department, a Foreign Trade Department, two factories and 10 production lines, with an annual output of more than 4,000 trailers of various types.
Can you meet my customization requirements?
+
-
Of course, we can customize and produce according to your requirements for special vehicle models.
Can you deliver on time?
+
-
We will sign a contract with the customer and deliver the goods on schedule as agreed in the contract.
How can I trust you?
+
-
Integrity in operation is our philosophy, and we adhere to the principle of making a deal while gaining a friend. You are welcome to visit our company for inspection.
What kind of payment methods do you accept?
+
-
We accpet both T/T : 30% deposit by T/T,70% balance should be paid before shipment.
- Welcome your enquiry and visite !
