Red Low-bed Trailer
Red low-bed semi-tralier
|
Parameter |
Specification |
Parameter |
Specification |
|---|---|---|---|
|
Model Name |
8-Axle Gooseneck Low Loader Semi-Trailer |
Axle Configuration |
8 axles, 4 dual-axle groups, 4 tires/axle |
|
Tire Configuration |
32 heavy-duty tires, 295/80R22.5 |
Axle Brand |
FUWA heavy-duty axles with auto-adjust arms |
|
Overall Length |
16m standard, 15.5-16.5m customizable |
Overall Width |
3m standard, 2.55m optional |
|
Platform Length |
13.5m (excl. gooseneck), 13m effective |
Platform Height |
0.95m unloaded, 1.05m loaded |
|
Curb Weight |
18.5 tons empty |
Rated Load Capacity |
100 tons standard, up to 120 tons customizable |
|
Kingpin Specification |
90mm main, 50mm optional |
Brake System |
ABS anti-lock, full-axle independent circuit, spring parking brake |
|
Lighting System |
ADR certified full lamp set |
Main Beam Material |
Q690 high-strength alloy steel |
|
Platform Material |
8mm anti-slip checkered steel plate |
Ladder Configuration |
Rear spring-assisted hydraulic ladder, 3.5m, 30° slope |

Side-view

Rear-view

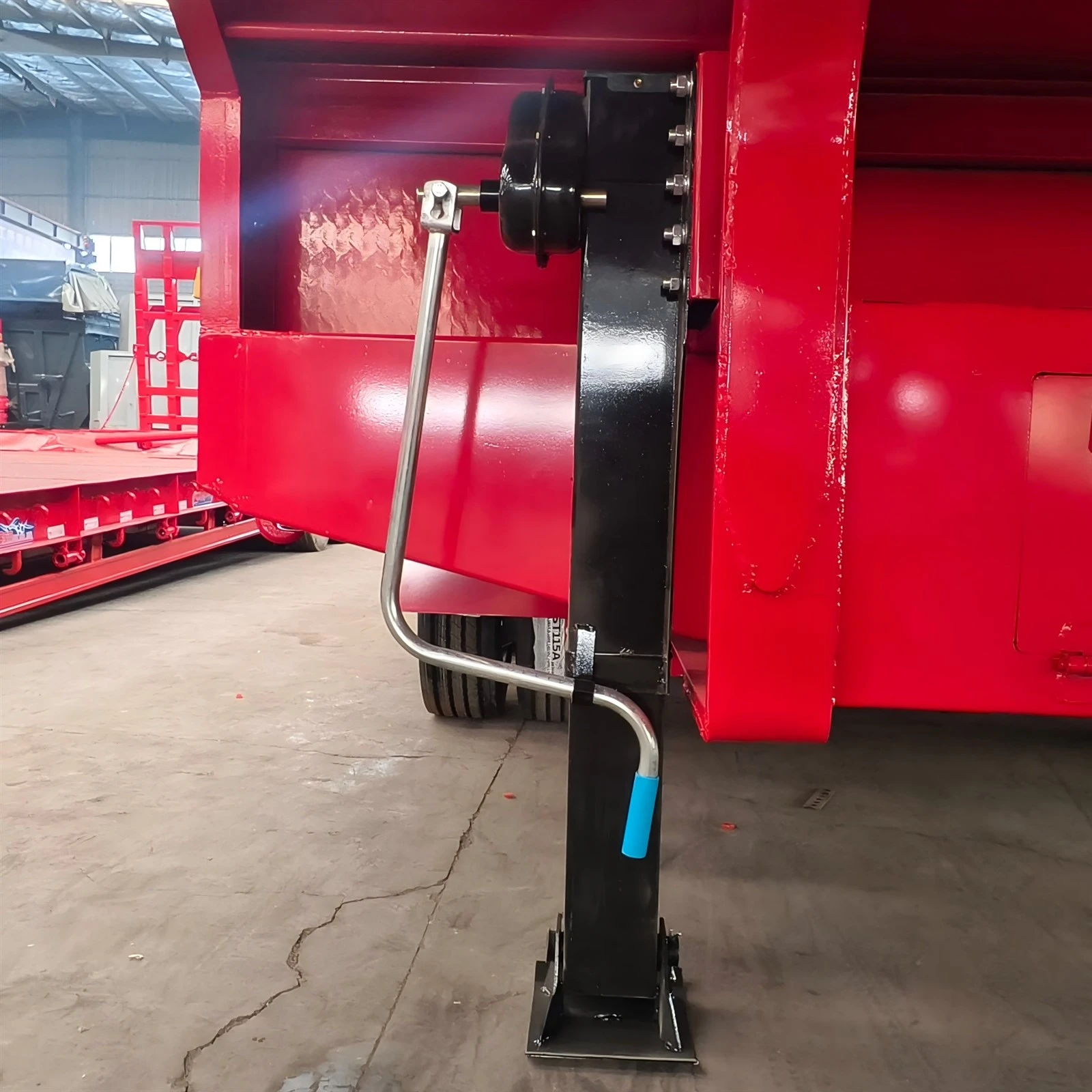

Landing Gear

Front view




WHO ARE WE?
We are Shandong Jutong Special Vehicle Co., Ltd. With 20 years of factory manufacturing experience and decades of deep engagement in the semi-trailer industry, we are capable of producing semi-trailers that meet the quality standards of multiple countries. We provide one-stop services covering sea freight, customs declaration, shipment arrangement and cargo insurance. Choosing us means partnering with a long-term and reliable business ally. You gain superior service and premium quality at the lowest possible cost.
High qualtity
Advanced Equipment
Well-known company
One-stop service
